LM-MINI-84IA HEADPHONE AMPLIFIER - PUSH PULL EL84 - 2X3W

The LM-mini84IA is a real integrated amplifier using a single ended output stagz using EL84 tubes in class A mode. The output power of 2x3W perfectly match with all audiophile headphones. This power capability allows the LM-mini84IA to drive qualitative hi-fi speakers. A A selector located on the front panel allow the user to choose between headphone or speaker output modes.

HIGHLIGHTS

  • Compact
  • Point-to-point wiring

TUBES

  • Input stage: 2x 12AX7
  • Power stage: 2x EL84

MAIN FEATURES

  • Bias control is accessible on top of the amplifier panel with true ampere meter.
  • Analog input: 1 Line input stereo
  • Load impedance: 4/8Ω
  • Metal and removable tube guard cage
  • Class AB amplifier
  • Power: 2x3W RMS
  • THD: 1% (1kHz)
  • Signal/Noise ratio: 87dB (Weighted A)
  • Frequency responsive (-1.5dB): 10 - 50.000 Hz
  • Sensitivity: 210 mV (Mode intégré)
  • Input Impedance: 100kΩ
  • Load impedance for HP to connect: 4/8Ω

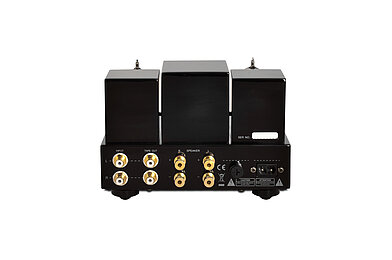

Connectors
1x Line input RCA (pair)
1x Headpohone output Jack 3,5mm
2x Screw terminals compatible with banana plugs

Included Accessories
2x Fuses
1x Detachable power cord
1x Manual

Tubes Basics | Common Replacements
12AX7 | 12AX7EH, ECC83, E83CC, CV4004, ECC803, 5751
12AU7 | ECC82,12AU7EH, 5814, 6189, CV4003
EL84 | 6P14, 6P14P, 6BQ5, N709

Dimensions (L x H x P): 175 x 123 x 190 mm
Weight: 4.5 Kg

Black
