LM-84IA Integrated Tube Amplifier – Push-Pull EL84 – Class AB – 2x12W

LM-84IA Integrated Tube Amplifier – Push-Pull EL84 – Class AB – 2x12W

€1.399,00 EUR
€1.399,00 EUR

Experience the pure musicality of the Line Magnetic LM-84IA, a Class AB Integrated Stereo Amplifier that delivers a refined 12 watts per channel. Designed with hand-selected EL84 power tubes and premium 12AX7 and 12AU7 input tubes, this amplifier brings your music to life with unmatched warmth and clarity.

The LM-84IA features specially designed Toroid and Japanese audio-grade output transformers to ensure a wide bandwidth and minimal interference. It is built for the modern listener, offering an integrated headphone output for private sessions and a subwoofer output for those seeking deeper bass. Every detail from the high-end Japanese ALPS volume control to the protective 30-second SoftStart circuit is engineered to provide a luxurious and reliable listening experience.

Highlights

  • Twelve watts per channel output.

  • Class AB Integrated Stereo Amplifier design.

  • Specially designed toroid transformers with Z11 Core for power supply.

  • Two Japanese audio grade EI types of output transformers with wide bandwidth.

  • Hand-selected and matched tubes for pre-stage and power stage to ensure optimal sound quality.

Main Features

  • Integrated headphone output for enjoying headphone systems.

  • Subwoofer output for connecting an external subwoofer to enhance bass.

  • SoftStart and time-delay circuit (30 seconds) to protect internal components.

  • High-quality components including Japanese ALPS volume potentiometer and silver-plated signal cables.

  • Standard with remote volume control.

  • Dual inputs for CD and Line sources.

Technical Specifications

  • Power Output: 12W + 12W.

  • Frequency Response: 20Hz-30KHz (+/- 1.5dB).

  • Total Harmonic Distortion (THD): 1%.

  • Signal-to-Noise (S/N) Ratio: 87dB.

  • Input Sensitivity: Line: 250mV; Pre-in: 1000mV.

  • Input Impedance: 100kΩ.

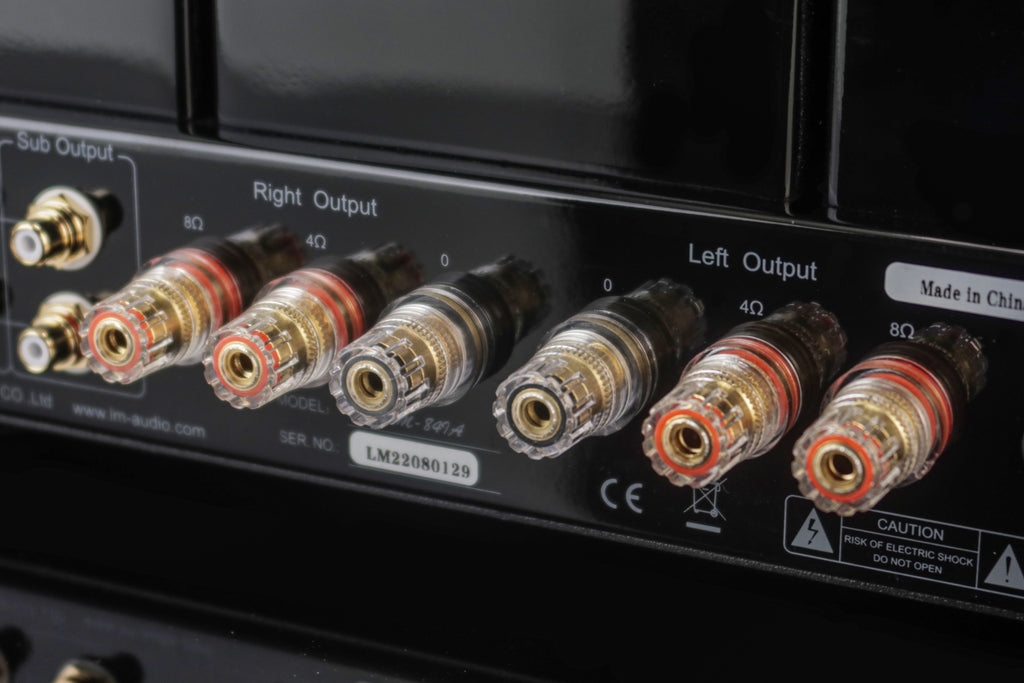

  • Output Impedance: 4Ω, 8Ω.

  • Dimensions (W x H x D): 360 x 290 x 160 mm.

  • Net Weight: 13.75kg.

Included Accessories

  • 1x LM-84IA Amplifier.

  • 1x Remote control (Model LM-02).

  • 1x Detachable power cord.

  • 2x Fuses.

  • 1x User manual.

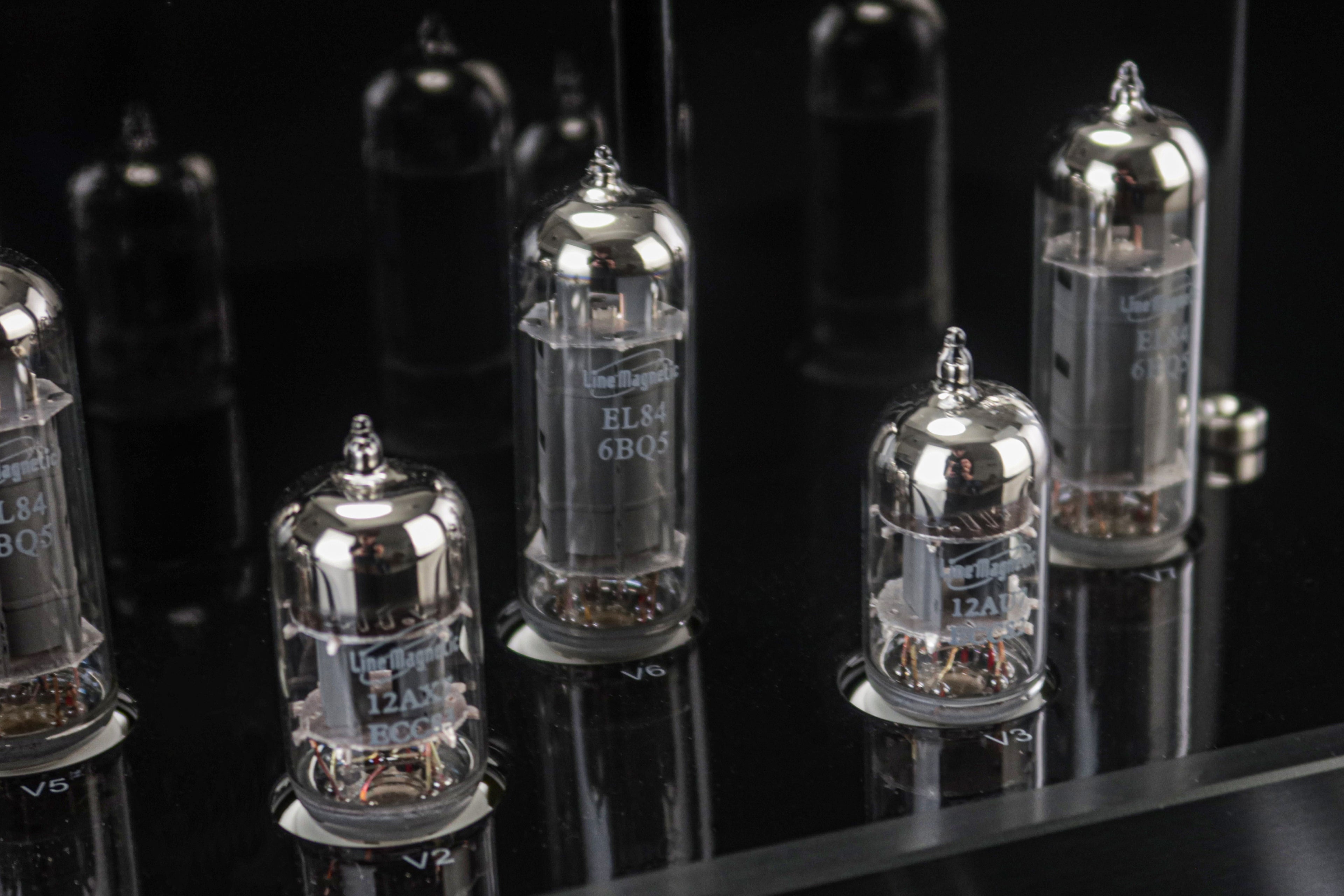

Tubes Basics | Common Replacements

  • EL84 (Output Power Tubes): 6P14, 6BQ5, 611411.

  • 12AX7 (Input Tube): 12AX7EH, ECC83, E83CC, CV4004, ECC803, 5751.

  • 12AU7 (Input Tubes): 12AU7EH, ECC82, 5814, 6189, CV4003.
