LM-211IA Integrated Tube Amplifier – Push-Pull EL34 – 2x32W
LM-211IA Integrated Tube Amplifier – Push-Pull EL34 – 2x32W

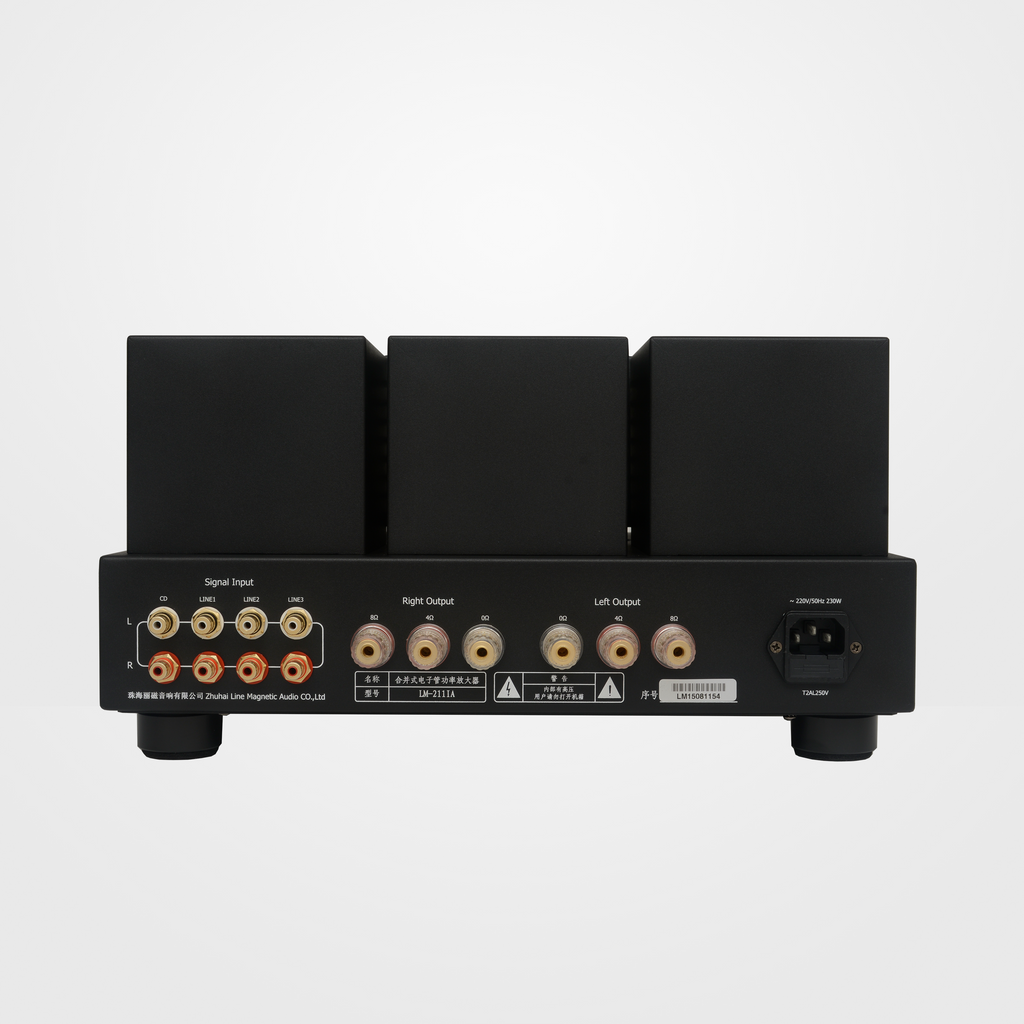

The Line Magnetic integrated amplifier LM-211IA is a push pull amplifier with 4x EL34 tubes in Class AB amplification and delivers 2x15W in triode mode and 2x32W in ultra-linear mode. It has 4 balanced line inputs and 4/8Ω output groups.

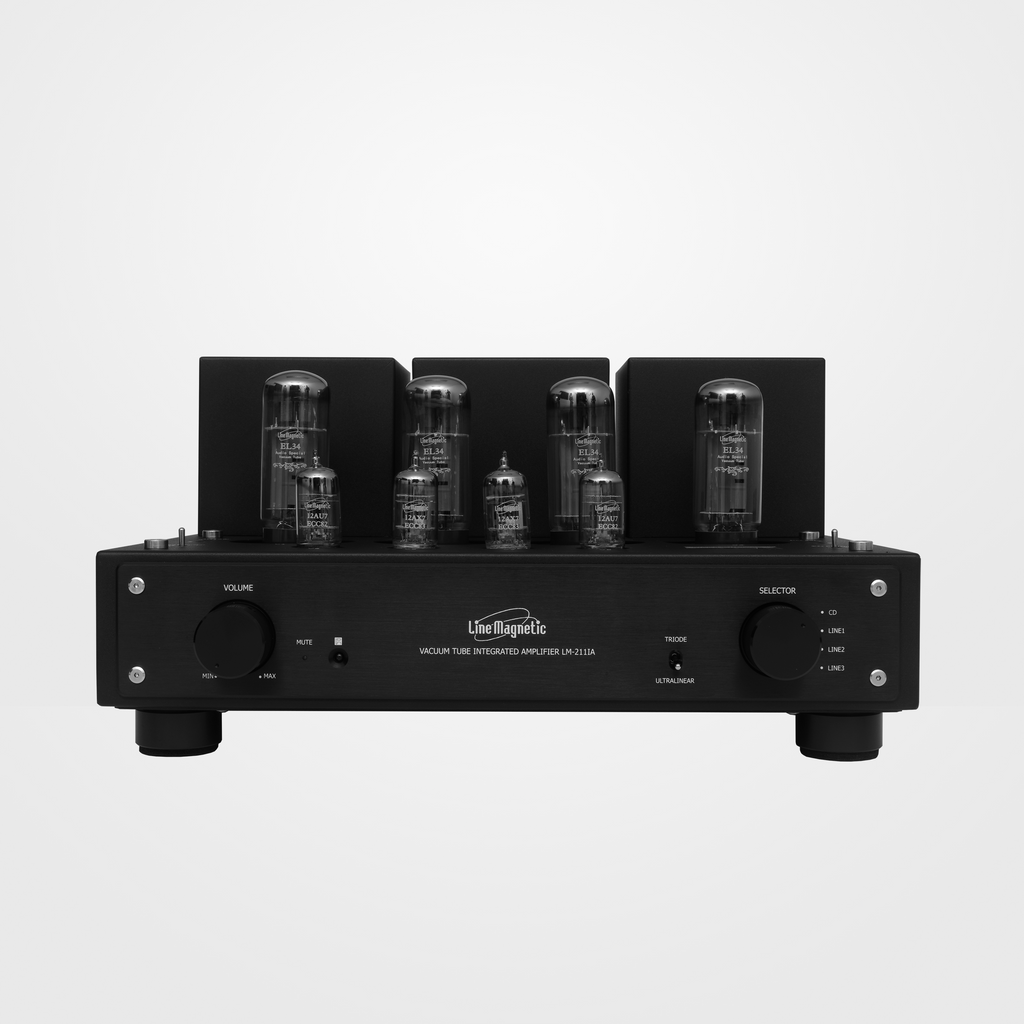

The rear-illuminated front panel meter is used to adjust polarization of the tubes. The use of high quality components (Realcap capacitors, ALPS potentiometer) wired in the air for the most part is the guarantee of exemplary reliability. Its transformers output are of EI type, specially designed for power supply. The LM-211IA delivers dynamic, rich and natural sound.
Highlights
Push-pull
Classe AB amplifier
Point-to-point wiring
High quality components
TUBES
Input stage: 2x 12AX7 et 2x 12AU7
Power stage: 4x EL34
Main Features
Hand-made construction with the finest point-to-point wiring
Bias control is accessible on top of the amplifier panel with true ampere meter.
Analog Inputs: 4 line inputs
Load impedance: 4/8Ω
SoftStart and time-delay circuit. (30 seconds)
Specially designed EI transformer for power supply
Two EI output transformers with wide bandwidth are applied
ALPS volume control and Realcap capacitors are applied.
Metal and removable tube guard cage
Infrared Remote control
Technical Specifications
- Class AB amplifier
- 2x15W RMS Triode 2x32W RMS Ultra-linear
- Tubes: 2x 12AX7, 2x 12AU7, 4x EL34
- THD: 1% (1kHz)
- Signal/Noise ratio: 88dB (Weighted A)
- Frequency response: 10 à 50.000 Hz (-1.5 dB)
- Sensitivity: 200 mV (Built-in Mode)
- Input Impedance: 100kΩ
- Load impedance for HP to connect: 4/8Ω
-
Dimensions (L x H x P) : 376 x 192 x 345 mm
- Weight: 19.6 Kg
Included Accessories
2x Fuses
1x Remote control
1x Detachable power cord
1x Manual
Tubes Basics | Common Replacements
12AX7 | 12AX7EH, ECC83, E83CC, CV4004, ECC803, 5751
12AU7 | ECC82, 12AU7EH, 5814, 6189, CV4003
EL34 | 6CA7
