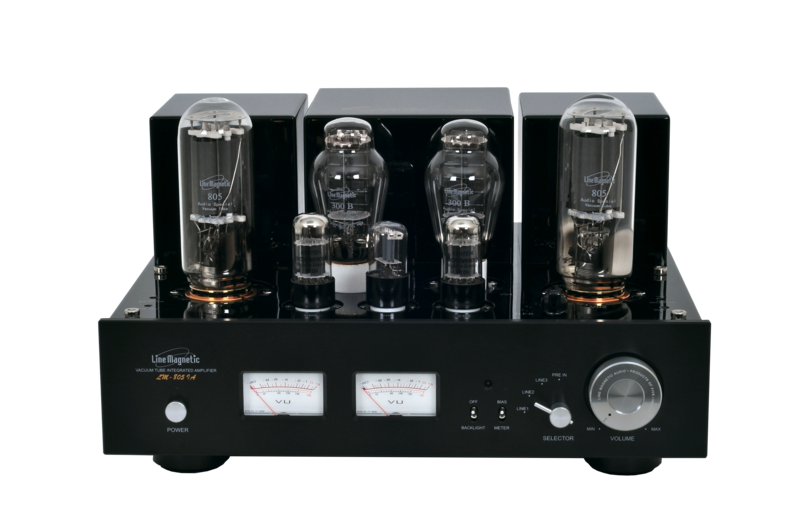

LM-805IA INTEGRATED TUBE AMPLIFIER - SINGLE ENDED 805 - 2X48W

The Line Magnetic 805iA uses single-ended triode 805 tubes and operate in pure Class A. It delivers 2x48W power. It has 3 unbalanced line inputs, 1 bypass input and 4, 8, 16Ω output groups. The rear-illuminated front panel meter is used to adjust the polarization of the tubes.

The use of high-quality components (Mundorf N-Cap capacitors, ALPS potentiometer) wired in the air for the most part is the guarantee of exemplary reliability. Its power and current capacity allows it to manage a very wide range of speakers. The use of the legendary triode 805 offers a listening to an unusual musicality.

HIGHLIGHTS

Single ended design
Class A amplifier
Point-to-point wiring
High quality components
TUBES
Input stage: 1x 6SL7 2x 6SN7
Drivers: 2x 300B
Power stage: 2x 805 « single-ended » et Pure Class A

MAIN FEATURES

Support des Tubes en stéatite
Hand-made construction with the finest point-to-point wiring
Bias control is accessible on top of the amplifier panel with true ampere meter.

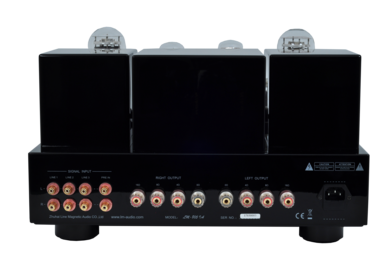

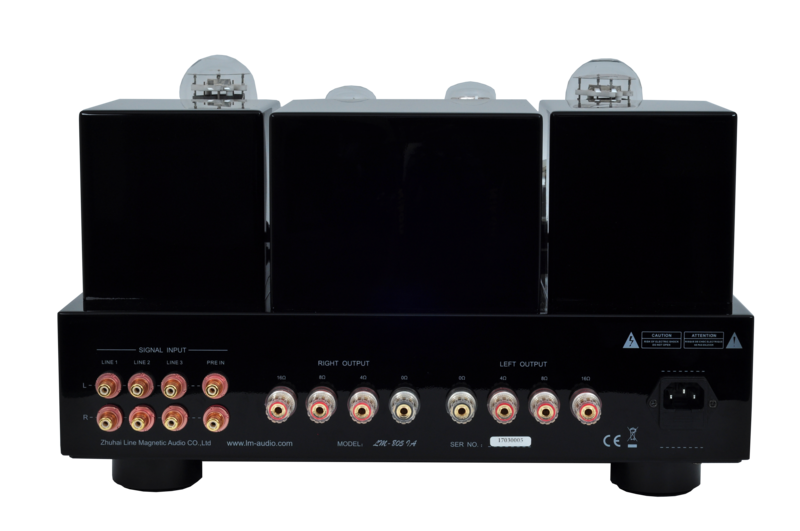

Analog Inputs: 3 line inputs, 1 by-pass input Load impedance: 4/8/16Ω SoftStart and time-delay circuit. (30 seconds)
Specially designed EI transformer for power supply
Two EI output transformers with wide bandwidth are applied
ALPS volume control and Realcap capacitors are applied.
Metal and removable tube guard cage
Infrared Remote control
